A 1940 county mosaic and a 2023 USDA-FSA aerial record show the same Robinson Preserve viewport before and after documented restoration.
Compare Manatee County's 1940 aerial mosaic with USDA-FSA NAIP imagery acquired January 6, 2023. Both frames use one fixed viewport.
Earlier: Manatee County GIS, 1940; month and day unknown. Later: USDA Farm Service Agency, January 6, 2023. The control changes only how much of the aligned later frame is visible.
The strongest difference is the broad interior pattern. Straight farm divisions in the 1940 frame give way to irregular ponds, narrow water connections, and curving paths in 2023. Read those shapes with the documented restoration record, not as measurements of individual shorelines or project areas.

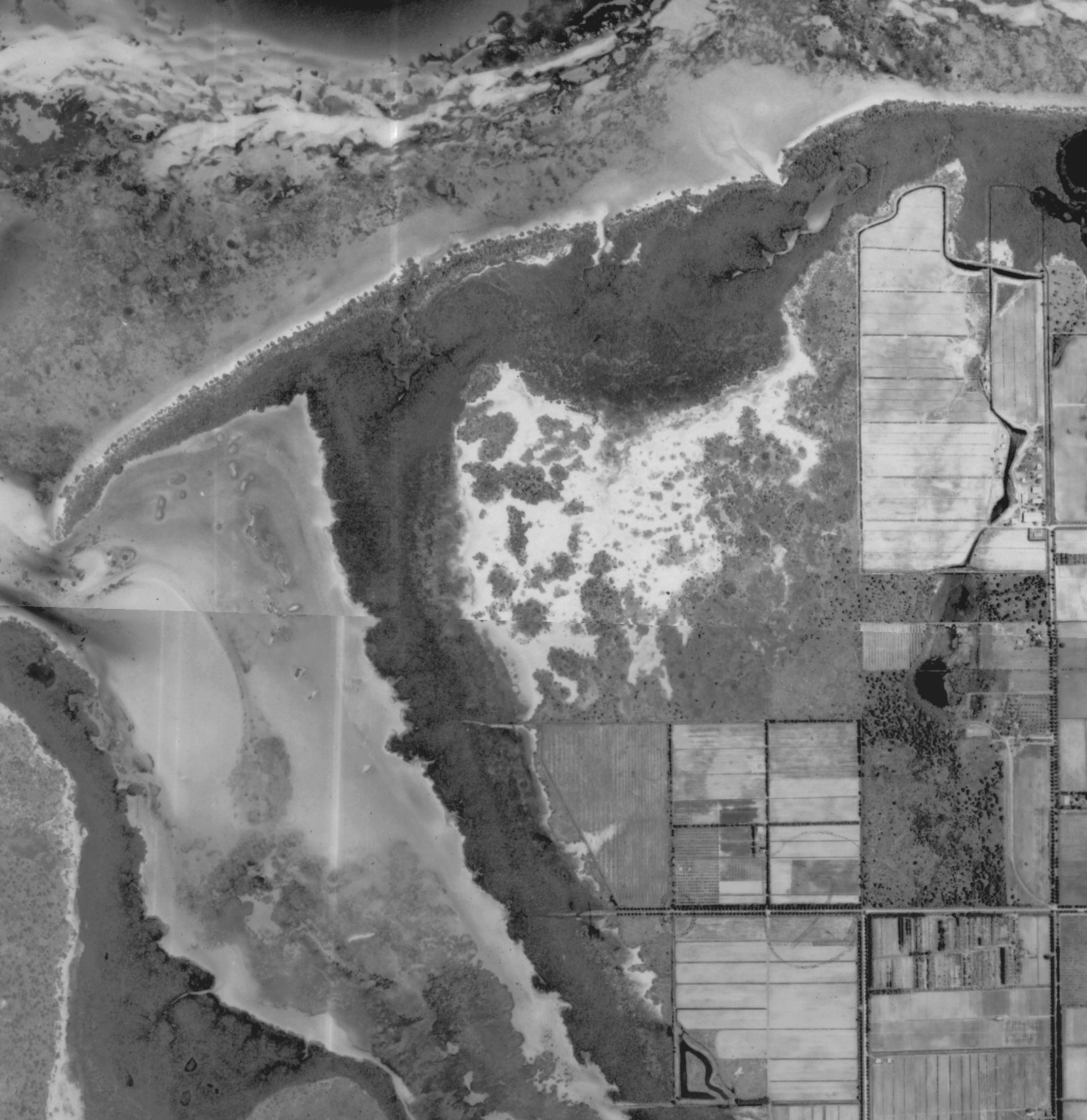

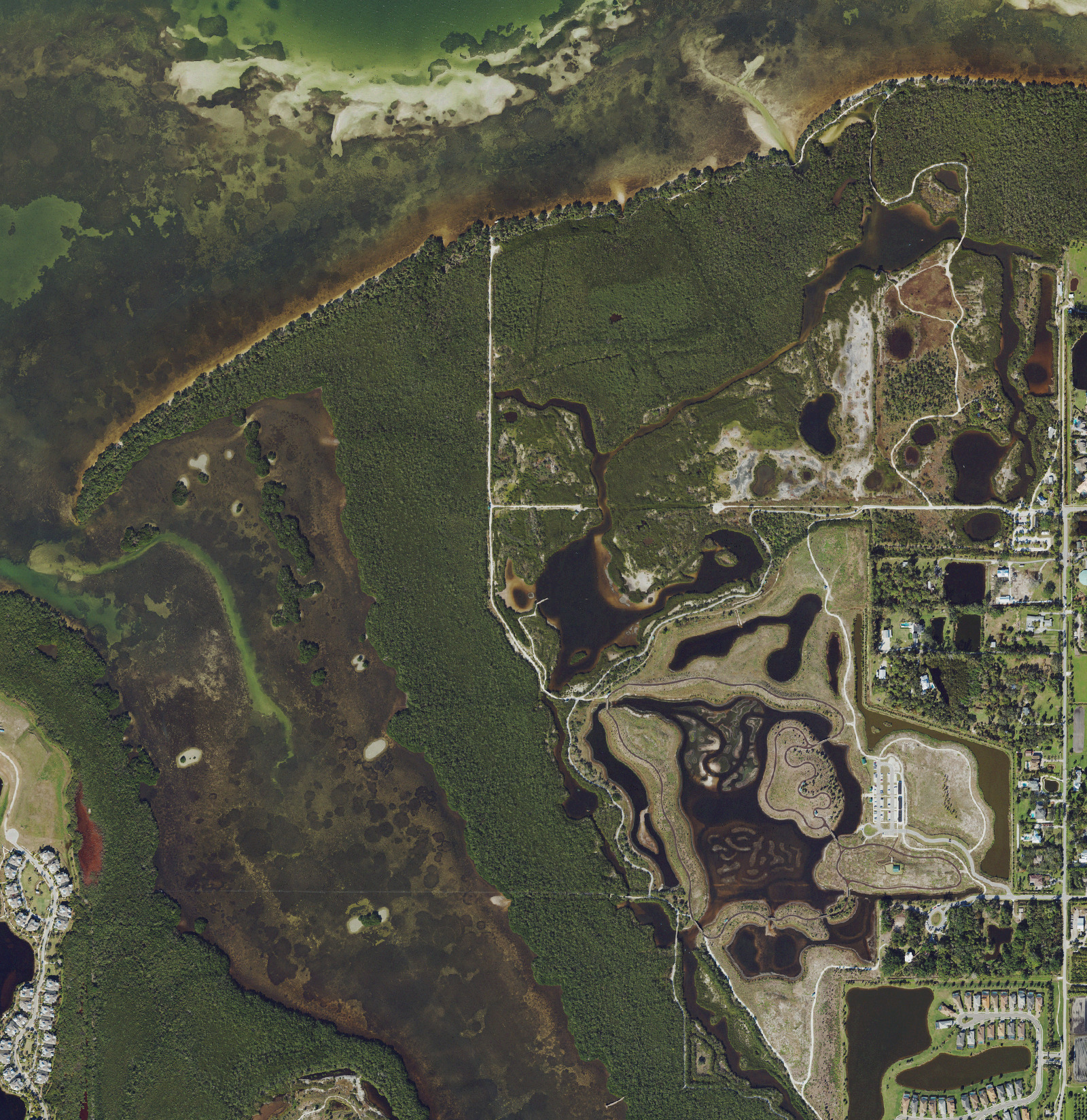

Visible in the pair: Rectangular blocks occupy the eastern and southern interior in 1940. In 2023, irregular ponds, channels, and wet cells occupy much of the same broad area.
Established by the project record: NOAA documents the former farm and the county-led wetland restoration.
The pair cannot assign every cell to a project phase or establish its area.
Sources: NOAA restoration history
Visible in the pair: The modern frame contains more curving pale paths, narrow water connections, and shaped interior edges than the straight agricultural divisions in 1940.
Established by the project record: NOAA documents wetland restoration, paddling trails, and completion of the later expansion in 2021.
The pair alone cannot identify each line as a trail, berm, channel, or phase boundary.
Sources: NOAA restoration history · NOAA habitat award record
Visible in the pair: The northern coastal edge, western bayou boundary, and eastern road corridor remain recognizable around the changed interior.
Established by the project record: These persistent features support rough alignment of the county and USGS frames. They do not establish ecological condition.
Different tide, season, resolution, and historical mosaic error block fine shoreline or vegetation claims.
Sources: Manatee County 1940 aerial record · USGS NAIP imagery index
NOAA Fisheries records that the original Robinson Preserve property was farmland, Manatee County acquired it in 2003, and the first restoration phase was completed and opened in 2008. NOAA separately records that the later expansion was completed in 2021. The current preserve includes wetlands and paddling trails.
Primary sources: NOAA Fisheries Robinson Preserve restoration history · NOAA Fisheries 2024 habitat award record
This story is generated only after both frame records pass the local provenance, rights, checksum, and viewport validator.
Authoritative metadata · Full Manatee County metadata · Rights record · Source imagery
Coastline Memory is historical context. Use the launch guide for access details and the live map for current conditions.
Open the Robinson Preserve launch guide
